For many motorists, the word "CVT" has long become almost a curse. The belt, overheating, cones, expensive repairs, and the advice "better get a normal automatic" immediately come to mind. But when it comes to Toyota or Honda hybrids, an important nuance arises: the e-CVT used in such cars is fundamentally different.
This transmission lacks the familiar belt or chain that operates between expanding pulleys. There are no classic gear steps, no conventional clutch, and no torque converter. Yet, hybrid cars with such a system can travel hundreds of thousands of kilometers.
Therefore, equating e-CVT with a conventional belt-driven CVT is incorrect.
Why e-CVT cannot be considered a regular CVT
A classic CVT changes the gear ratio using a belt or chain connecting two variable-diameter pulleys. By changing the position of the pulleys, the gear ratio changes.
The e-CVT operates on a different principle.
In Toyota's hybrid system, a planetary gear set plays a key role. It connects the gasoline engine to the electric part of the system and allows power to be distributed between them.
Therefore, it is more accurate to think of e-CVT not as a traditional gearbox that sequentially changes gears, but as a mechanism for managing power flows between multiple energy sources.
This leads to an important conclusion: problems specific to belt-driven CVTs do not apply to e-CVT.
There is no:
- belt or chain between two conical pulleys;
- the pulleys themselves of a classic CVT;
- belt wear and slippage;
- damage to cones due to loads typical for a conventional CVT.
How three elements make the car move
If we simplify the hybrid system's design as much as possible, we can identify three main participants.

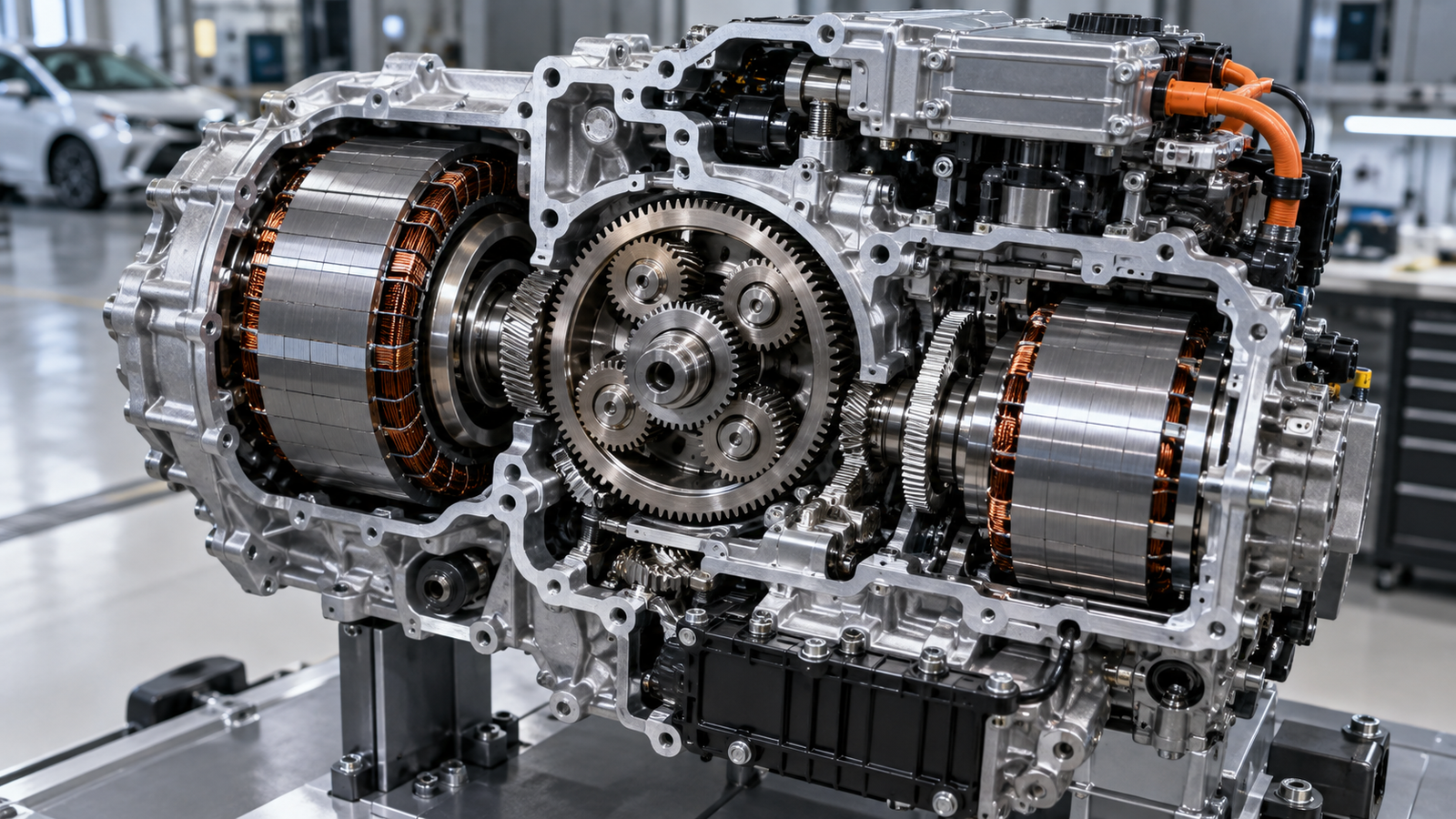

The first is the gasoline engine. The second is an electric motor that can directly propel the car. The third is a motor-generator that performs several functions at once: it can start the internal combustion engine, generate electricity, and participate in controlling the modes of the entire system.
All three elements are connected by a planetary gear set.
During a gentle start, the car can move for some time solely on electric power. When power becomes insufficient, the gasoline engine kicks in. During intense acceleration, the electric motor additionally assists the internal combustion engine.
During braking, the reverse process occurs. The electric motor acts as a generator and returns some of the energy to the high-voltage battery. The electronics constantly determine the most efficient way to use the available energy at any given moment.
This is why the driver does not feel the usual transitions between first, second, third, and subsequent gears. In fact, there's simply nothing to shift here.
Less mechanics – fewer reasons for wear
One of the main features of e-CVT becomes clear when compared to other types of transmissions.
A modern classic automatic can include many gears, clutch packs, a valve body, solenoids, a torque converter, and a complex hydraulic system. A robotized gearbox has clutches, actuators, and shifting mechanisms.
A conventional CVT uses a belt or chain and a pair of pulleys.
In a hybrid e-CVT, the mechanical part is significantly simpler. There is no constant shifting of physical gears and no friction elements that must sequentially engage and disengage with each acceleration.
The fewer parts constantly subjected to mechanical wear, the fewer potential sources of problems. This largely explains the reputation of hybrids like the Toyota Prius, which can travel very long distances on their original hybrid transmission.
Why the engine sounds strange
The e-CVT has a peculiarity that can surprise someone switching from a conventional automatic.
When the accelerator pedal is pressed sharply, the engine quickly gains RPMs, after which it holds them at roughly the same level for some time. The car continues to accelerate during this.
The driver expects the usual sequence: first gear, shift, second, shift again. But nothing of the sort happens.
Hence the comparison to a vacuum cleaner: the engine hums at practically constant RPMs, while the car continues to gain speed.
From a technical point of view, this is not a drawback. On the contrary, the system strives to keep the engine in a mode where it can most efficiently deliver the required power.
But emotionally, such acceleration can indeed lose out to a good classic automatic or a DSG dual-clutch robotic gearbox.
e-CVT was created for efficiency
The main task of this transmission is not to give the driver a sporty feeling. Its purpose is to combine the operation of the gasoline engine and the electric motor as efficiently as possible.
In city driving at low speeds, the electric part can do most of the work. During acceleration, the internal combustion engine connects, and the electric motor assists it.
If it is more advantageous for the gasoline engine to operate in a different mode, the system changes the power distribution. When the driver releases the accelerator pedal, regeneration begins. At a stop, the gasoline engine can even turn off.
All this happens automatically.
The driver controls the car with conventional pedals, and the electronics repeatedly redistribute energy flows between the engine, electric motors, and battery during a single trip.
This is the main idea behind e-CVT: to make the operation of the entire hybrid system as efficient as possible and, at the same time, as imperceptible as possible to the person behind the wheel.
There are also disadvantages
However, e-CVT should not be considered an ideal transmission either.
The first drawback is already obvious from the car's feel. Intense acceleration without familiar shifts is not for everyone. Those who like a sporty car response and the sensation of gear changes might find this characteristic boring.
The second point is related to repairs. If a malfunction occurs directly within the hybrid system or power electronics, it must be diagnosed by a specialist who truly understands the design of hybrid vehicles.
There is also a third important nuance: e-CVT cannot be evaluated separately from the entire hybrid system.
Even a very reliable transmission does not mean that a used hybrid can be bought without diagnostics. Before purchasing, it is necessary to pay attention to the condition of:
- the high-voltage battery;
- the hybrid cooling system;
- the inverter;
- service history;
- the car as a whole.
Therefore, the statement "it has an e-CVT, so the car is definitely trouble-free" would be as incorrect as fearing this transmission just because of the letters CVT in its name.
Which transmission is better?
There is no definitive answer here – it all depends on what the driver expects from the car.
If sporty sensations are paramount, e-CVT is unlikely to be the obvious favorite. A good dual-clutch robotized gearbox shifts more noticeably and emotionally, and a modern classic automatic feels more familiar during acceleration.
However, if smoothness, fuel efficiency, reliability, and effective cooperation between the internal combustion engine and the electric motor are important, e-CVT looks much more interesting.
Its character is especially well revealed in the city: traffic jams, frequent stops, constant starts, and low speeds correspond to the mode for which the hybrid system is best suited.
Ultimately, the main compliment to e-CVT is that the driver doesn't think about the transmission most of the time. There's no need to wait for a gear change, choose the moment to engage the next gear, or listen to the gearbox's operation. The system independently distributes power and simply does its job.
Therefore, it's not worth transferring all the negativity accumulated around conventional belt-driven CVTs to the hybrid e-CVT. Despite the identical letters CVT, these are completely different designs in terms of operating principle.
